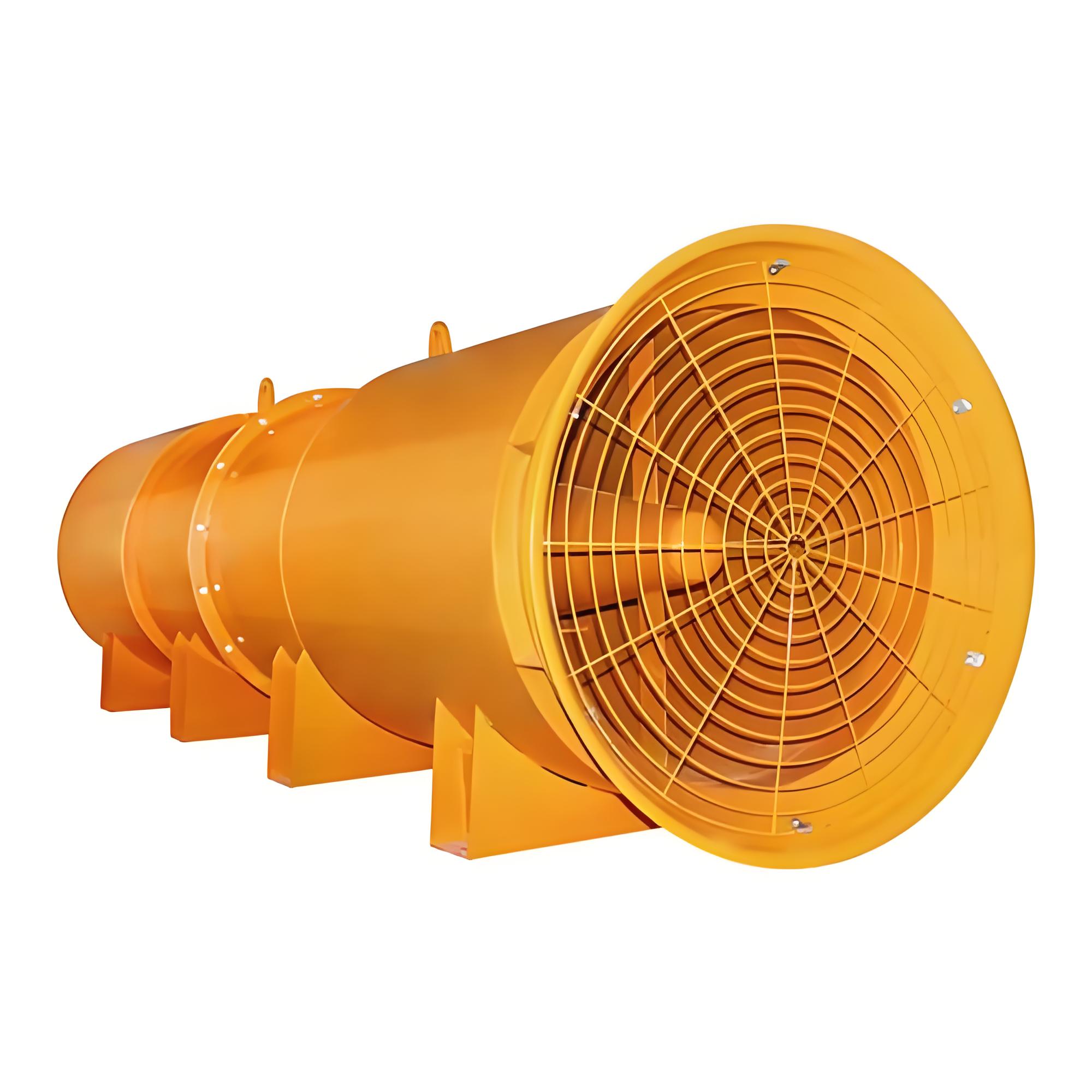

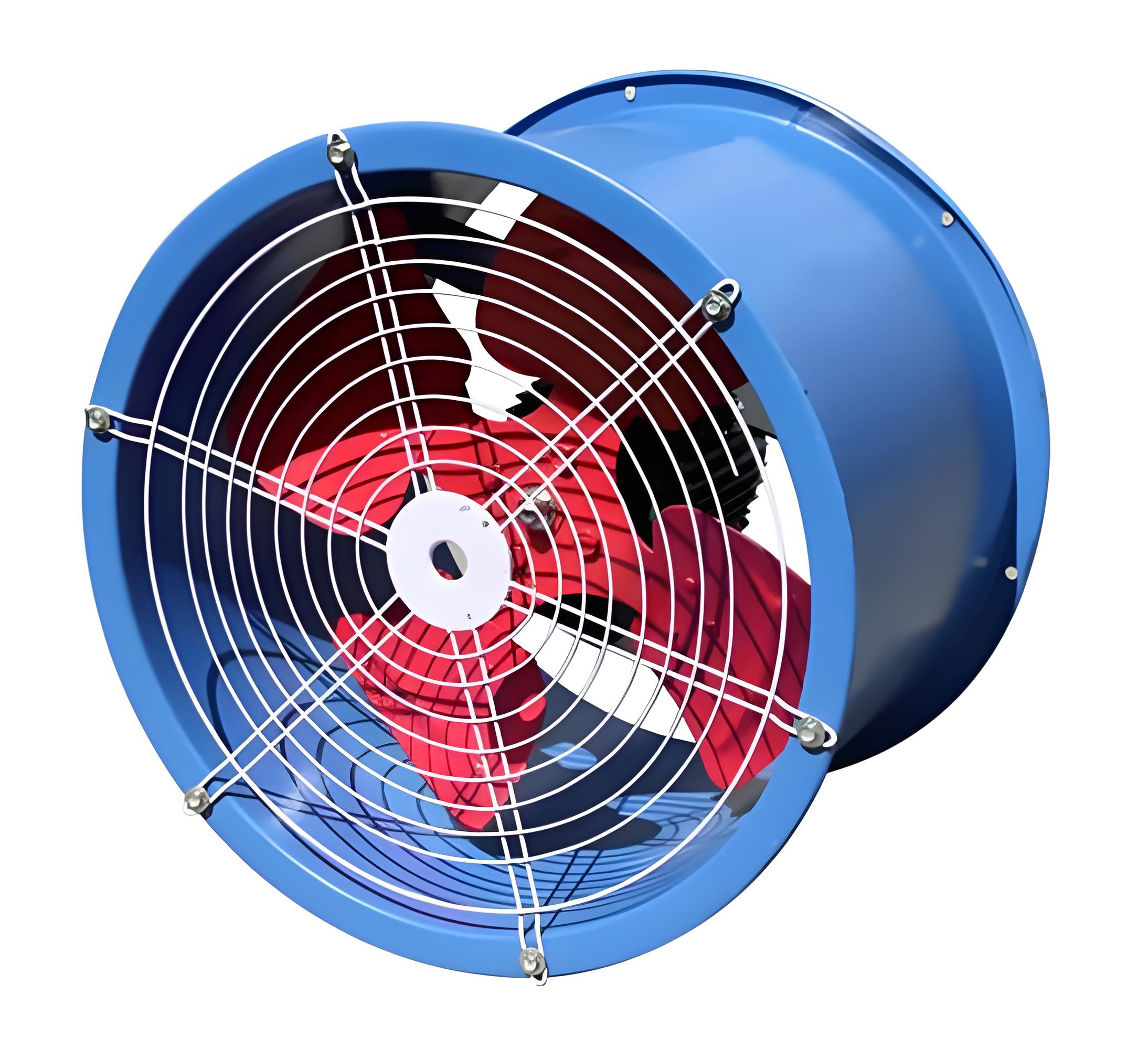

Axial fans are designed to move large volumes of air parallel to the fan shaft, making them ideal for ventilation and cooling applications.
Compared with centrifugal fans, axial fans provide higher airflow with lower pressure, which makes them suitable for applications requiring large air volume and energy-efficient operation.
✔ Large Airflow Capacity
✔ Energy-Efficient Operation
✔ Low Noise Design
✔ Simple Structure & Easy Installation
✔ Suitable for Continuous Operation
✔ Adjustable Blade Angle (Optional)
🔹Airflow Capacity: 1,000 – 500,000 m³/h
🔹Pressure Range: 50 – 1,500 Pa
🔹Fan Diameter: 300 – 3,000 mm
🔹Motor Power: 0.18 – 200 kW
🔹Speed: 290 – 1,450 rpm
🔹Material: Carbon Steel / Stainless Steel / FRP
🔶 Applications
Factory ventilation
Workshop air circulation
Road tunnels
Underground systems
Equipment cooling
Heat dissipation
Air supply systems
Exhaust systems
🔶 Structure & Working Principle
✔Axial fans mainly consist of:
✔Impeller (Blades)
✔Motor
✔Fan Casing
✔Support Frame
✔Protective Grille
✔The fan operates by rotating blades that push air along the axis, generating a high-volume airflow with low pressure.
🔹 15+ Years Industrial Fan Manufacturing Experience
🔹 Customized Design Solutions
🔹 High Efficiency & Energy Saving
🔹 Strict Quality Control System
🔹 Fast Delivery & Global Export Experience
👉 Custom design available based on project requirements
🔶 Frequently Asked Questions
Q1: What is the difference between axial fan and centrifugal fan?
A: Axial fans provide large airflow with low pressure, while centrifugal fans provide higher pressure with lower airflow.
Q2: Can axial fans be used outdoors?
A: Yes, they can be customized with weather-resistant and anti-corrosion materials.
Q3: Are axial fans energy efficient?
A: Yes, they are ideal for moving large volumes of air with low energy consumption.
